This dial indicator mount has a protective shield that will help to protect the dial indicator in case the tool is dropped. Without the shield it is very likely the dial indicator will be damaged if dropped. This kit includes a (.0001") Ten Thousandths Dial Indicator.

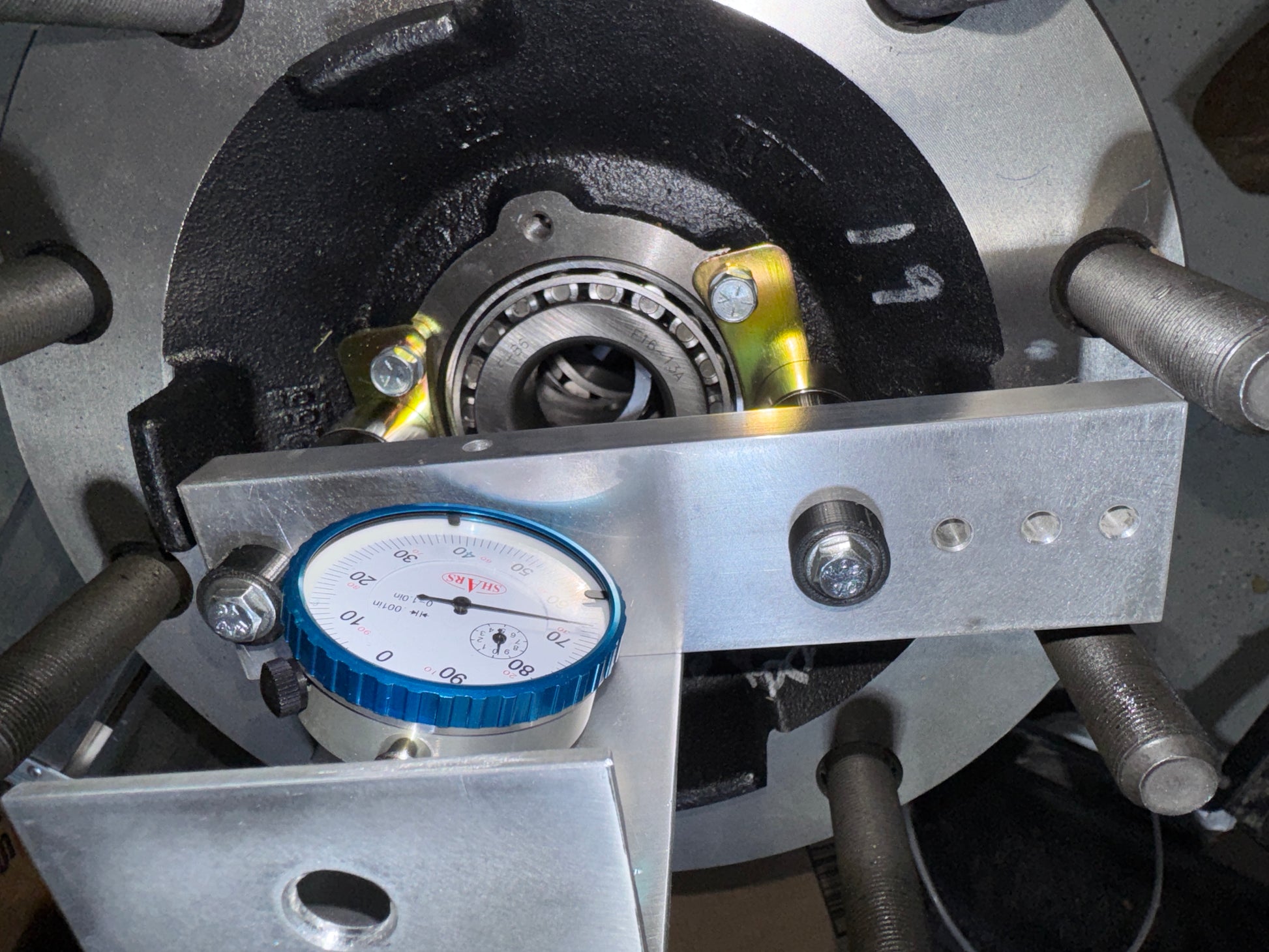

Bearing Adjustment Dial Indicator Gage for Measuring End Play on Heavy or Medium duty wheel ends. The aluminum bar is .625” thick x 8.25” long, and has multiple holes drilled for multiple applications as examples below and has a 1⁄4-20 thumb screw for easy adjustment. Tool includes extra strong 100Lb pull force magnets, spacers, and bolts.

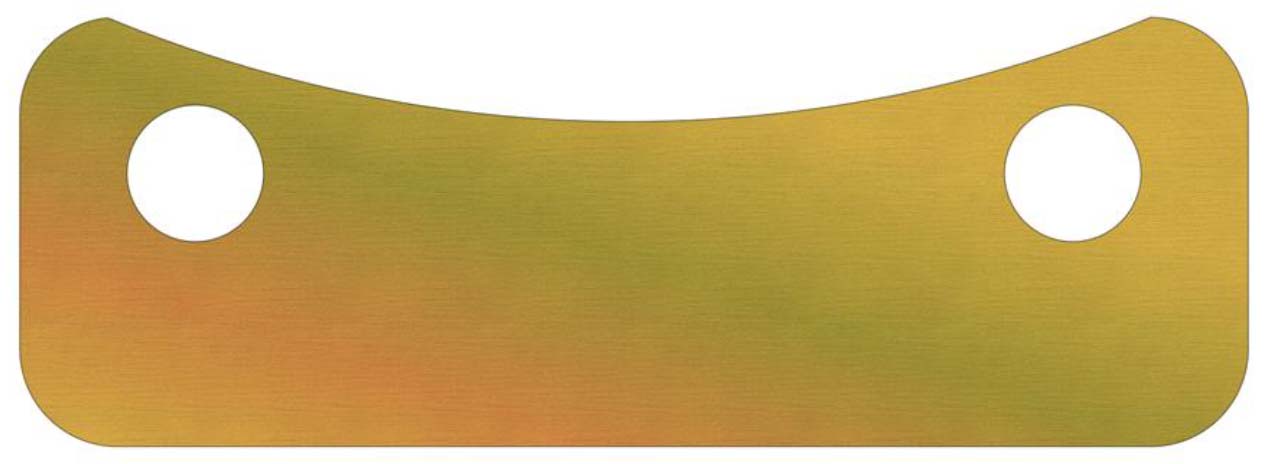

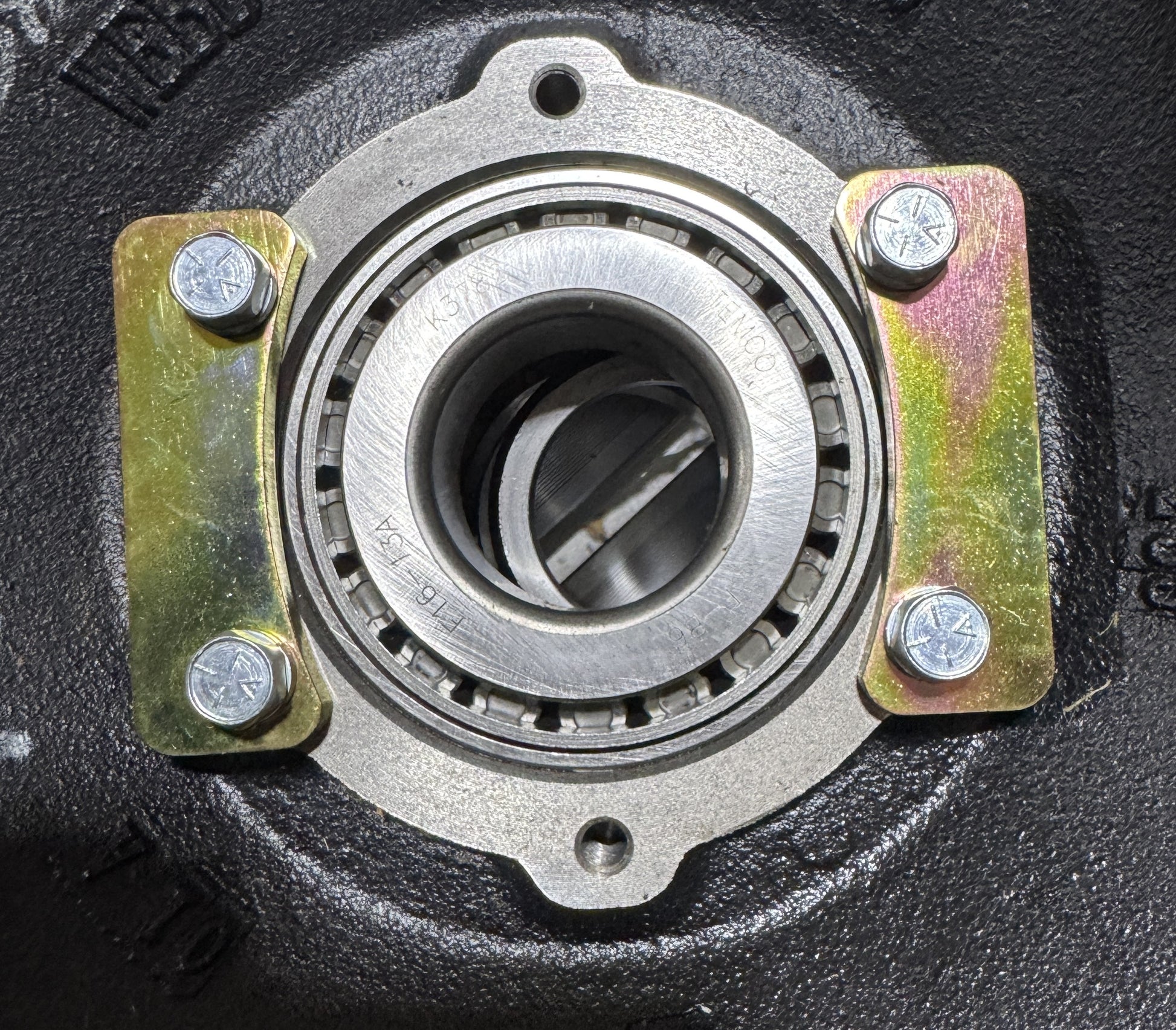

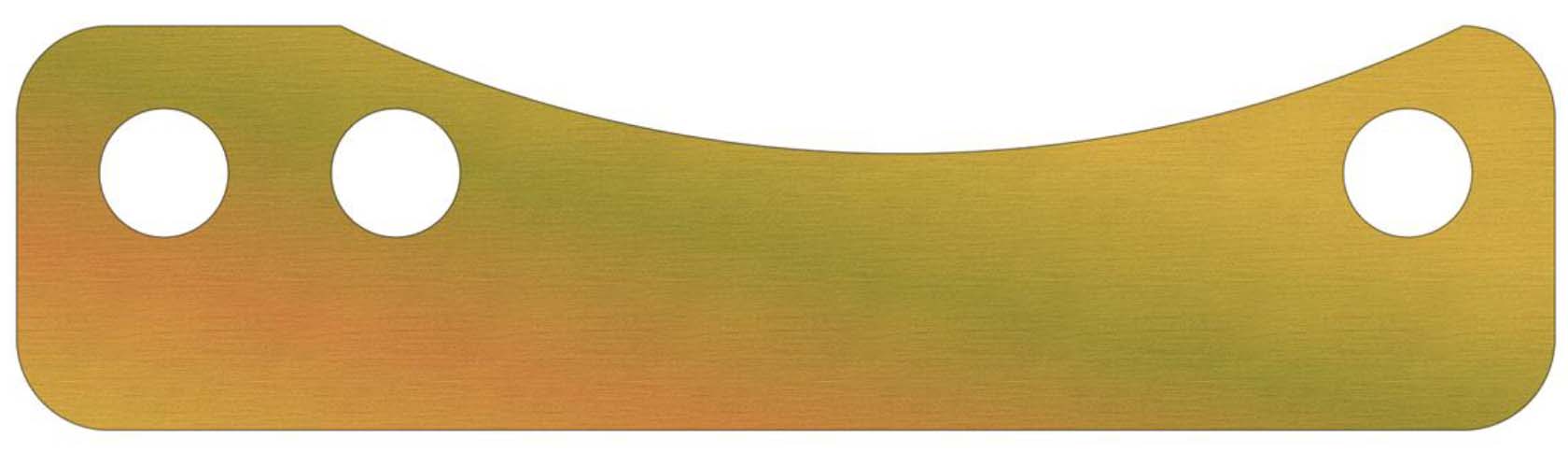

This KIT includes 2 each of the aluminum hub adaptors,
Part numbers = (FF-Brk), (TN-TP-Brk), (R-Drv-Brk), A 1 inch dial indicator tip extension, and the (INDS-3) Dial Indicator with shield.
· FF - Steer Axle – 4 1⁄2” bolt circle · TN – Tapered Trailer Axle – 5 1⁄2” bolt circle · TP – Straight Trailer Axle – 6 3⁄4” bolt circle · R - Drive Axle – 7” bolt circle
